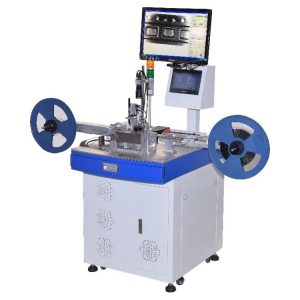

Multifunctional IC Programming Machine HJC-3500

HJC-3500 for the standard JEDEC tray, tape, tube programming / test three-in-one automation equipment, using X,Y,Z three-axis manipulator and Z axis equipped with four suction nozzle suction chip stable performance. Equipped with two built-in programmer (32 sites) and support external programmer (12 sites). Automatic tray feeding assembly can support up to 20 trays. Automatic tape sealing.

Convenient and efficient. Production capacity up to 3000 UPH, CCD testing, high equipment compatibility. Tray in and tape out, tape in and tray out, tray in and tray out, tape in and tape out, the tray in and tube out, the tape in and tube out, six modes.



Features:

Four suction nozzles,the production capacity is high

Comes with brake function, will not fall off when power off Protection chip damage

IC programming nozzles

Automatic taping assembly

Standard 12-16mm optional 8-32mm feeder

auto taping assemblyAuto tray assembly

Can support 20 trays, saving time and effort to improve efficiency

auto tray assembly Auto tube feeder

Tube  support SOP150/SOP210/SSOP210

auto IC tube feeder

 Options:

  1. Laser marking
  2. Code scanning
  3. Dotting







please contact sales for video
